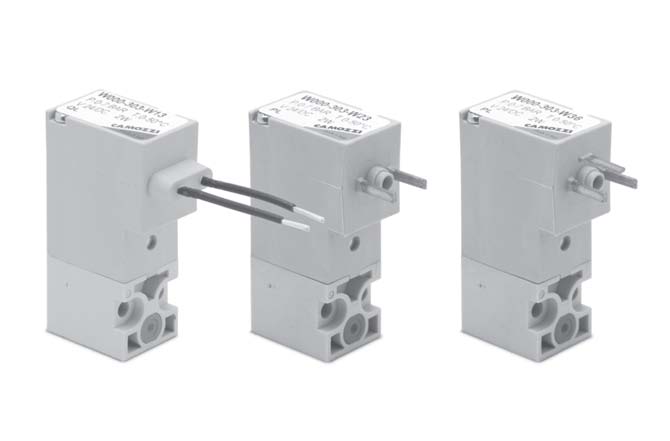

Directly operated mini-solenoid valves Series W
- Camozzi
- Control
- Directly operated solenoid valves
- Directly operated mini-solenoid valves Series W
Download PDF (667,9 Kb
3/2 way monostable N.C. and N.O. Ports: M5 (for single base) - cartridge ø 3 and 4 (for manifolds)
Series general data
| Valve functions |
3/2 N.C. - N.O. |
| Construction |
poppet type |
| Mounting |
by means of screws on subbase port M5 |
| Materials |
body in technopolymer NBR seals, other stainless steel |
| Installation |
in any position |
| Operating temperature |
0 ÷ 50°C |
| Operating pressure |
see table |
| Nominal flow rate (6 bar ?P 1) |
ø 1,5 Qn 43 Nl/min ø 1,1 Qn 30 Nl/min ø 0,8 Qn 20 Nl/min |
| Fluid |
filtered air, without lubrication. If lubricated air is used, it is recommended to use ISOVG32 oil. Once applied the lubrication should never be interrupted. |
| Voltage |
see table |
| Power consumption |
2W, 1W (only 24V) |
| Voltage tolerances |
± 10% |
| Class of insulation |
class F |
| Protection class |
IP65 with connector DIN 43650 |
| Duty cycle |
ED 100% |
Code
W
|
SERIES
|
0
|
BODY DESIGN:
0 = single sub-base (only M5) or interface
1 = single manifold
2 = double manifold
|
00
|
N° OF POSITIONS:
00 = interface
01 = single base (only M5)
02 ÷ 99 = manifold no. of positions
|
3
|
N° WAYS-FUNCTIONS:
0 = manifold or single sub-base
3 = 3 ways N.C.
4 = 3 ways N.O.
5 = 3 ways N.C. electric part revolved by 180°
6 = 3 ways N.O. electric part revolved by180°
|
0
|
VALVE PORTS:
0 = interface
MANIFOLD PORTS (for Series W and P):
2 = M5 side
3 = tube ø 3 side
4 = tube ø 4 side
6 = M5 rear ports
7 = ø 3 tube rear ports
8 = ø 4 tube rear ports
|
3
|
NOMINAL DIAMETER - MAX PRESSURE
1 = ø 0,8 (1W) 10 bar (N.C.) only 24V
3 = ø 1,5 (2W) 7 bar (N.C.)5 bar (N.O.)
5 = ø 1,1 NC (2W) 10 bar (N.C.)
ø 0,9 N.O. (2W) 10 bar (N.O.)
|
W
|
ENCAPSULATING MATERIAL:
W = thermoplastic
|
2
|
CONNECTION TYPE:
1 = cables 300mm (only 24V DC)
2 = 2 faston (24V - 48V DC)
|
3
|
SOLENOID VOLTAGE:
3 = 24V DC
4 = 48V DC
|
