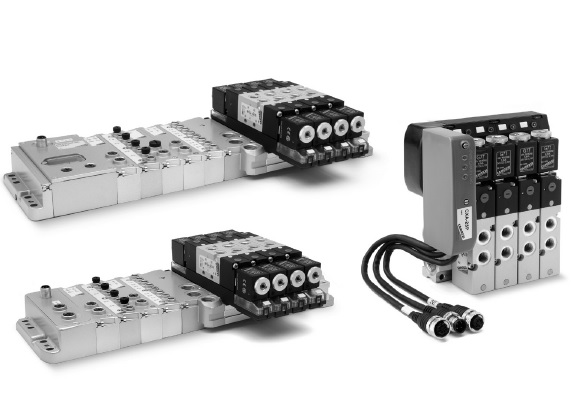

Plug-In system for Series 3 solenoid valves, G1/8 port.
| PNEUMATIC SECTION | |
| Valve construction | spool type with seals |
| Valve functions | 5/2 - 5/3 CC - 5/3 CO - 5/3 CP - 2x3/2 NO - 2x3/2 NC - 1 3/2 NO + 1 3/2 NC |
| Materials | AL body, stainless steel spool, NBR seals, technopolymer |
| Mounting | through-out holes in the manifold |
| Ports | valve = G1/8 - manifold = G3/8 |
| Installation | in any position |
| Operating temperature | from 0°C to 60°C (with dry air at -20°C) |
| Nominal flow rate | Qn 700 Nl/min |
| Nominal diameter | 7 mm |
| Fluid | Filtered air, class 7.4.4 according to ISO 8573-1-2010, without lubrication. If lubricated air is used, it is recommended to use ISO VG32 oil, and to never interrupt the lubrication. |
| ELECTRICAL SECTION - MULTIPOLE VERSION | |
| Max absorption | 3 A |
| Type of connection | Multipole 25-pin male Sub-D |
| Supply voltage | 24 V DC +/- 10% |
| Max number of solenoids | 22 on 22 valve positions |
| Signalling | yellow LED |
| Duty cycle | ED 100% |
| Protection class | IP65 |
| ELECTRICAL SECTION - FIELDBUS VERSION | |
| General characteristic | see the section about the Series CX multi-serial module (2.3.50) |
| Max absorption | digital outputs/analogic inputs and outputs 3A digital/analogic inputs 3 A |
| Voltage tolerances | logic supply 24 V DC +/- 10% power supply 24 V DC +/- 10% |
| 3 | SERIES |
| P | TYPE: P = Plug-In |
| 03A | CONNECTION: CONNECTOR WITH CABLE AXIAL OUTPUT: 03A = 3 m 05A = 5 m 10A = 10 m 15A = 15 mm 20A = 20 m 25A = 25 m CONNECTOR WITH CABLE RADIAL OUTPUT: 03R = 3 m 05R = 5 m 10R = 10 m 15R = 15 m 20R = 20 m 25R = 25 m CONNECTOR WITHOUT CABLE: 4XA = 25-pin axia 4XR = 25-pin radial |
| BDACAC | CONFIGURATION OF SUBBASE: A = 2 positions with bistable board B = 3 positions with bistable board C = 2 positions with monostable board D = 3 positions with monostable board |
| 2BC3MU2BMXU2B2M | VALVE FUNCTION: E = empty position M = 5/2 Monostable, internal servo-pilot supply B = 5/2 Bistable, internal servo-pilot supply C = 2 x 3/2 NC, internal servo-pilot supply A = 2 x 3/2 NO, internal servo-pilot supply G = 1 x 3/2 NC + 1 x 3/2 NO, internal servo-pilot supply H = 5/3 Closed Centres, internal servo-pilot supply K = 5/3 Exhaust Centres, internal servo-pilot supply N = 5/3 Pressure Centres, internal servo-pilot supply D = 5/2 Monostable, external servo-pilot supply Y = 5/2 Bistable, external servo-pilot supply Q = 2 x 3/2 NC, external servo-pilot supply R = 2 x 3/2 NO, external servo-pilot supply S = 1 x 3/2 NC + 1 x 3/2 NO, external servo-pilot supply V = 5/3 Closed Centres, external servo-pilot supply Z = 5/3 Exhaust Centres, external servo-pilot supply W = 5/3 Pressure Centres, external servo-pilot supply L = plate with closed free position X = supply plate and supplementary exhausts T = diaphragm on channels 1, 3, 5 U = diaphragm in supply 1 J = diaphragm exhausts 3 and 5 |
| G77 | SOLENOID MATERIAL: G = PA U = PET |
| 3 | SERIES |
| S | CONNECTION: 8 = Fieldbus |
| 01 | PROTOCOL: 01 = PROFIBUS-DP 02 = DeviceNet 03 = CANopen 04 = EtherNet/IP 05 = EtherCAT 06 = PROFINET 99 = Expansion Module |
| 2AQRS | INPUT / OUTPUT MODULES: 0 = no module A = 8 digital inputs M8 B = 4 digital inputs M8 C = 2 analog inputs 4-20 mA D = 2 analog inputs 0-10 V E = 1 analog input 4-20 mA + 1 input 0-10 V Q = 4 M12 duo digital outputs R = 2 analog outputs 4-20 mA T = 2 analog outputs 0-10 V U = 1 analog output 4-20 mA + 1 output 0-10 V V = 1 analog output 4-20 mA + 1 input 0-10 V Z = 1 analog output 4-20 mA + 1 input 4-20 mA K = 1 analog output 0-10 V + 1 input 0-10 V Y = 1 analog output 0-10 V + 1 input 4-20 mA S = Initial subnet module |
| BDACAC | CONFIGURATION SUBBASE: A = 2 positions with bistable board B = 3 positions with bistable board C = 2 positions with monostable board D = 3 positions with monostable board |
| 2BC3MU2BMXU2B2M | VALVE FUNCTION: E = empty position M = 5/2 Monostable, internal servo-pilot supply B = 5/2 Bistable, internal servo-pilot supply C = 2 x 3/2 NC, internal servo-pilot supply A = 2 x 3/2 NO, internal servo-pilot supply G = 1 x 3/2 NC + 1 x 3/2 NO, internal servo-pilot supply H = 5/3 Closed Centres, internal servo-pilot supply K = 5/3 Exhaust Centres, internal servo-pilot supply N = 5/3 Pressure Centres, internal servo-pilot supply D = 5/2 Monostable, external servo-pilot supply Y = 5/2 Bistable, external servo-pilot supply Q = 2 x 3/2 NC, external servo-pilot supply R = 2 x 3/2 NO, external servo-pilot supply S = 1 x 3/2 NC + 1 x 3/2 NO, external servo-pilot supply V = 5/3 Closed Centres, external servo-pilot supply Z = 5/3 Exhaust Centres, external servo-pilot supply W = 5/3 Pressure Centres, external servo-pilot supply L = plate with closed free position X = supply plate and supplementary exhausts T = diaphragm on channels 1, 3, 5 U = diaphragm in supply 1 J = diaphragm exhausts 3 and 5 |
| G77 | SOLENOID MATERIAL: G = PA U = PET |
