Interface with: PROFIBUS, CANopen, DeviceNet, EtherNet/IP,
GENERAL DATA
| Number of digital outputs | 1024 |
| Number of digital inputs | 1024 |
| Maximum input absorption | 1.5 A |
| Maximum output absorption | 3 A |
| Logical supply voltage * | 24 V DC +/-10% |
| Power supply voltage * | 24 V DC +/-10% |
| Protection | overload and reverse polarity |
| Protection class | IP65 |
| Conform with standards | EN-61326-1 EN-61010-1 |
| Operating temperature | 0-50°C |
| Material | Aluminium |

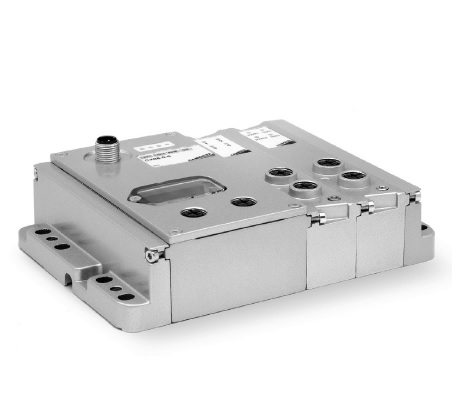

| CX | SERIES |
| 05 | PROTOCOL: 01 = PROFIBUS 02 = DeviceNet 03 = CANopen 04 = EtherNet/IP 05 = EtherCAT 06 = PROFINET 99 = Expansion Module |
| 2AC | INPUTS: 0 = no module nA = 8 digital inputs M8 nB = 4 digital inputs M8 nC = 2 IN 4-20 mA nD = 2 IN 0-10 V nE = 1 IN 4-20 mA + 1 IN 0-10 V |
| QT2S | OUTPUTS: 0 = no module nQ = 4 M12 duo digital outputs nR = 2 OUT 4-20 mA nT = 2 OUT 0-10 V nU = 1 OUT 4-20 mA + 1 OUT 0-10 V nV = 1 OUT 4-20 mA + 1 IN 0-10 V nZ = 1 OUT 4-20 mA + 1 IN 4-20 mA nK = 1 OUT 0-10 V + 1 IN 0-10 V nY = 1 OUT 0-10 V + 1 IN 4-20 mA nS = initial subnet module |
